--Product Features--

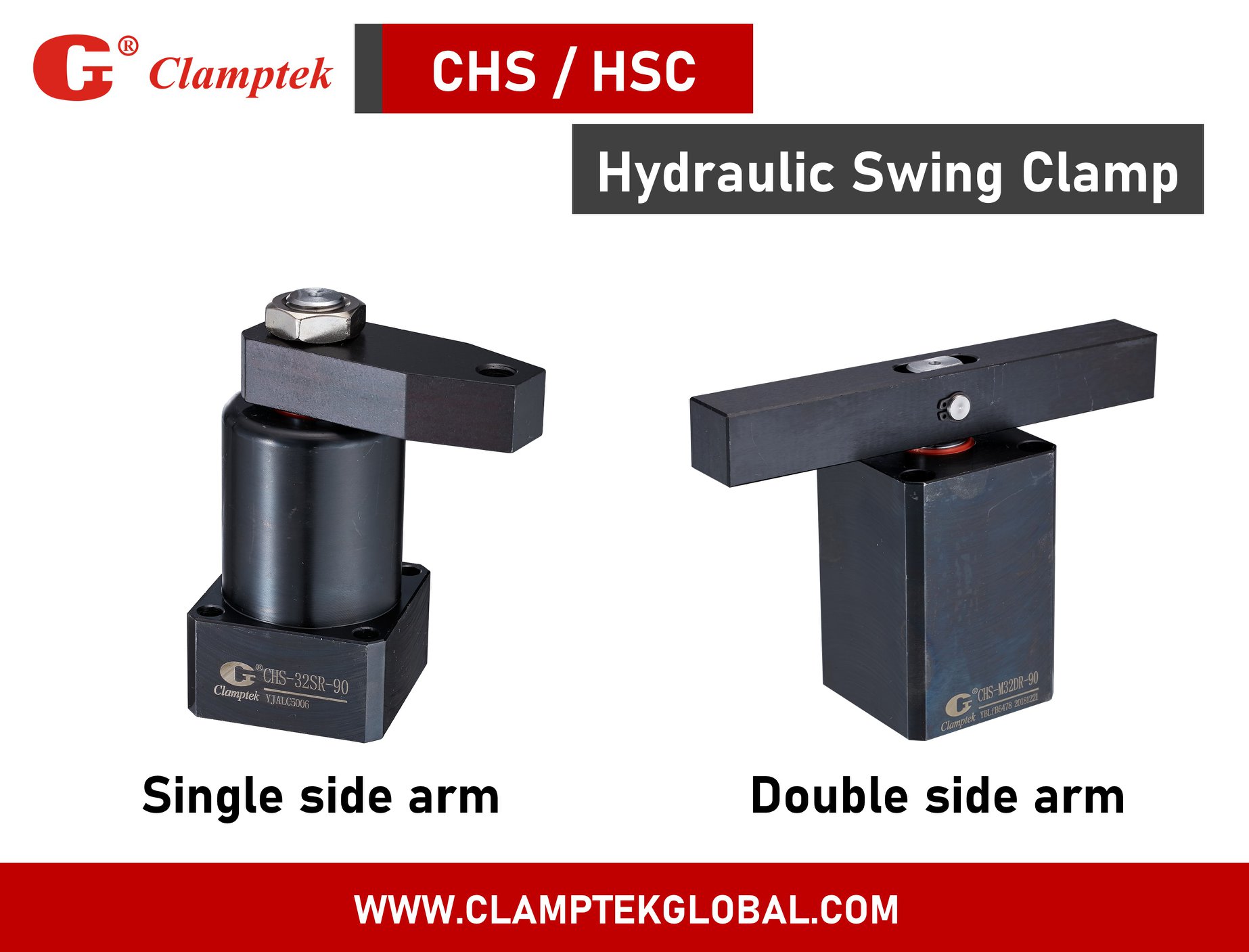

CHS/ HSC series is ideal for mass production on a special-purpose machine and jig in the machining center. It will greatly upgrade the production efficiency.

When the hydraulic clamp actuate, and the piston moves downward, the clamping arm will swing to a rated angle. Then it lowers until the workpiece is clamped securely.

To avoid too fast motion, a flow control valve is suggested to connect to the hydraulic swing clamp. Do not clamp the workpiece while the clamp is swinging to avoid damaging the cylinder barrel and internal parts.

The cylinder body is made from structural carbon steel. The inside surface is specially treated for maximum smoothness and long service life.

Max. operating pressure: 70 kgf/cm2

Min. operating pressure: 15 kgf/cm2
Double acting
