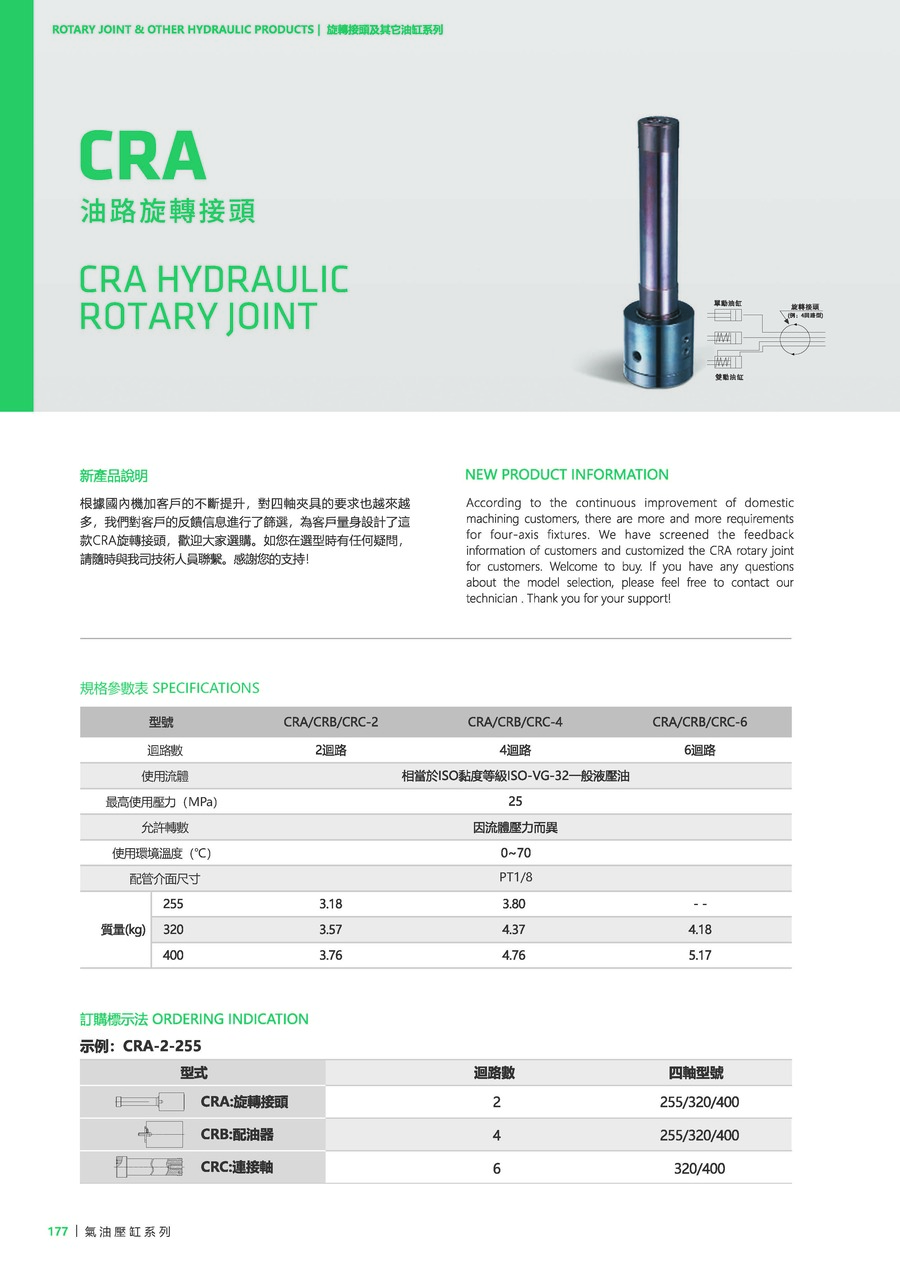

CRA

Product Information

According to the continuous improvement of domestic machining customers, there are more and more requirements for four-axis fixtures. We have screened the feedback information of customers and customized the CRA rotary joint for customers. Welcome to buy. If you have any questions about the model selection, please feel free to contact our technician. Thank you for your support!

Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.

Ordering Indication

（eg.CRA-2-255）

CRA	Series	CRA, CRB, CRC
2	The Number of the Ports	2, 4, 6
255	Model	255(This model is not available when the number of the ports is 6), 320, 400

Product Information

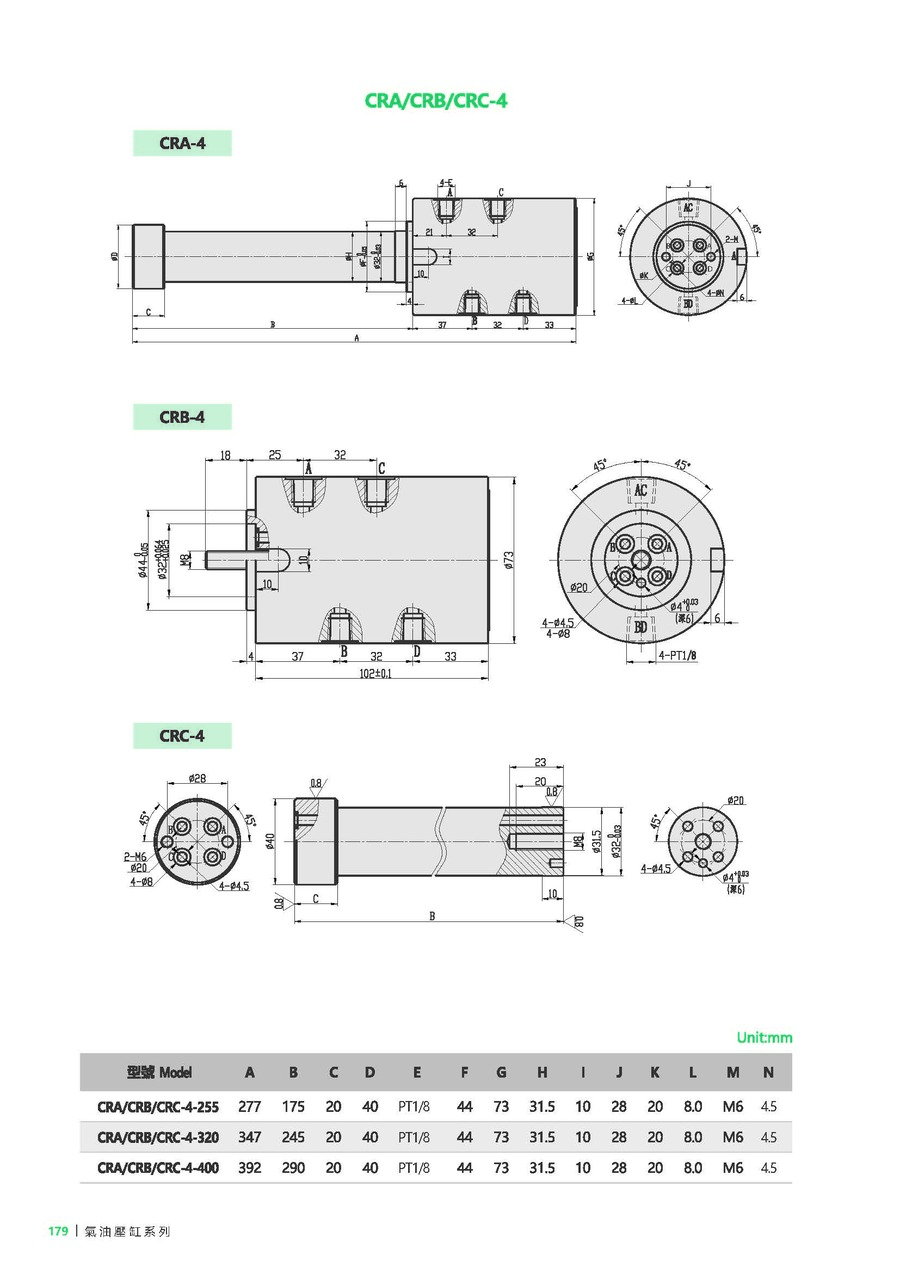

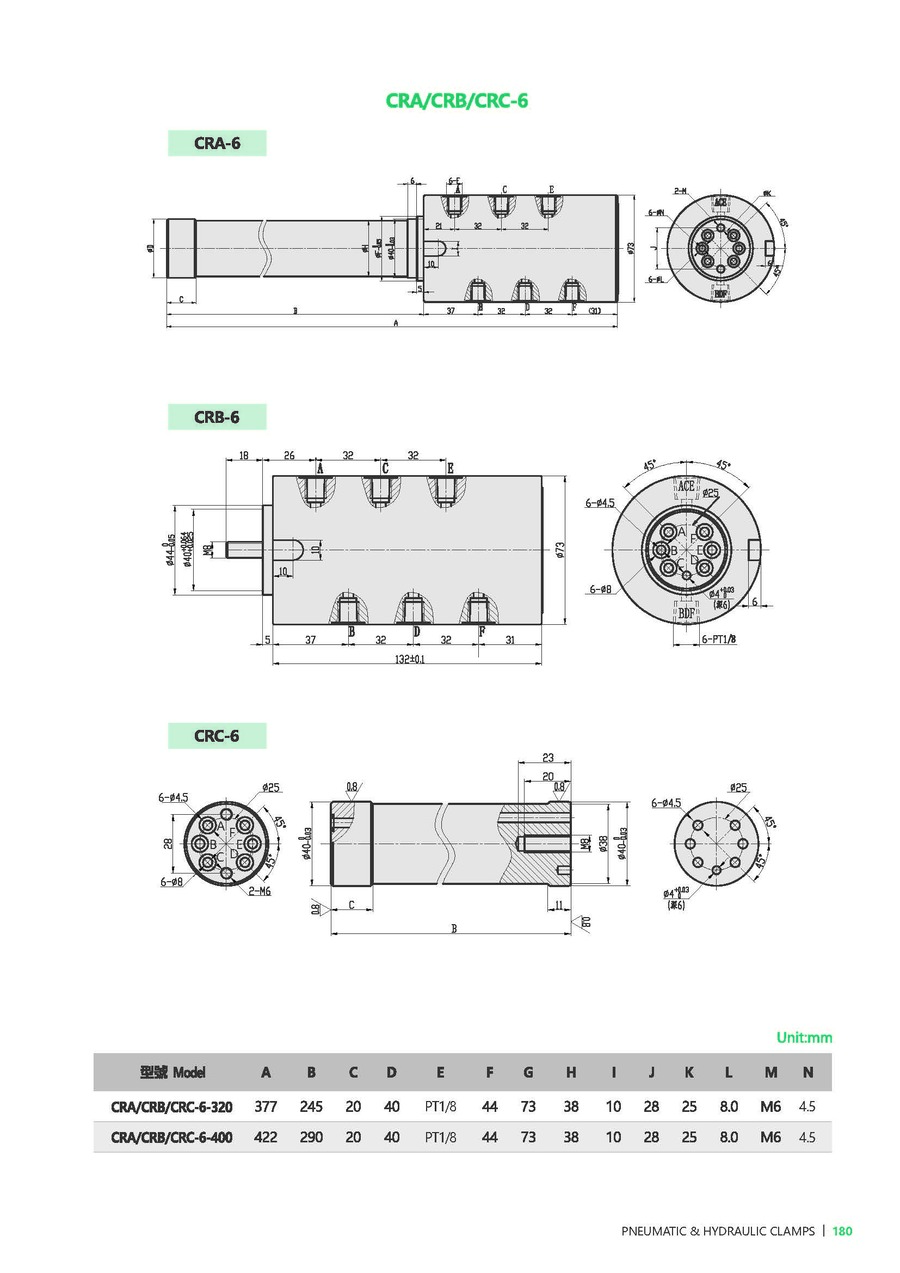

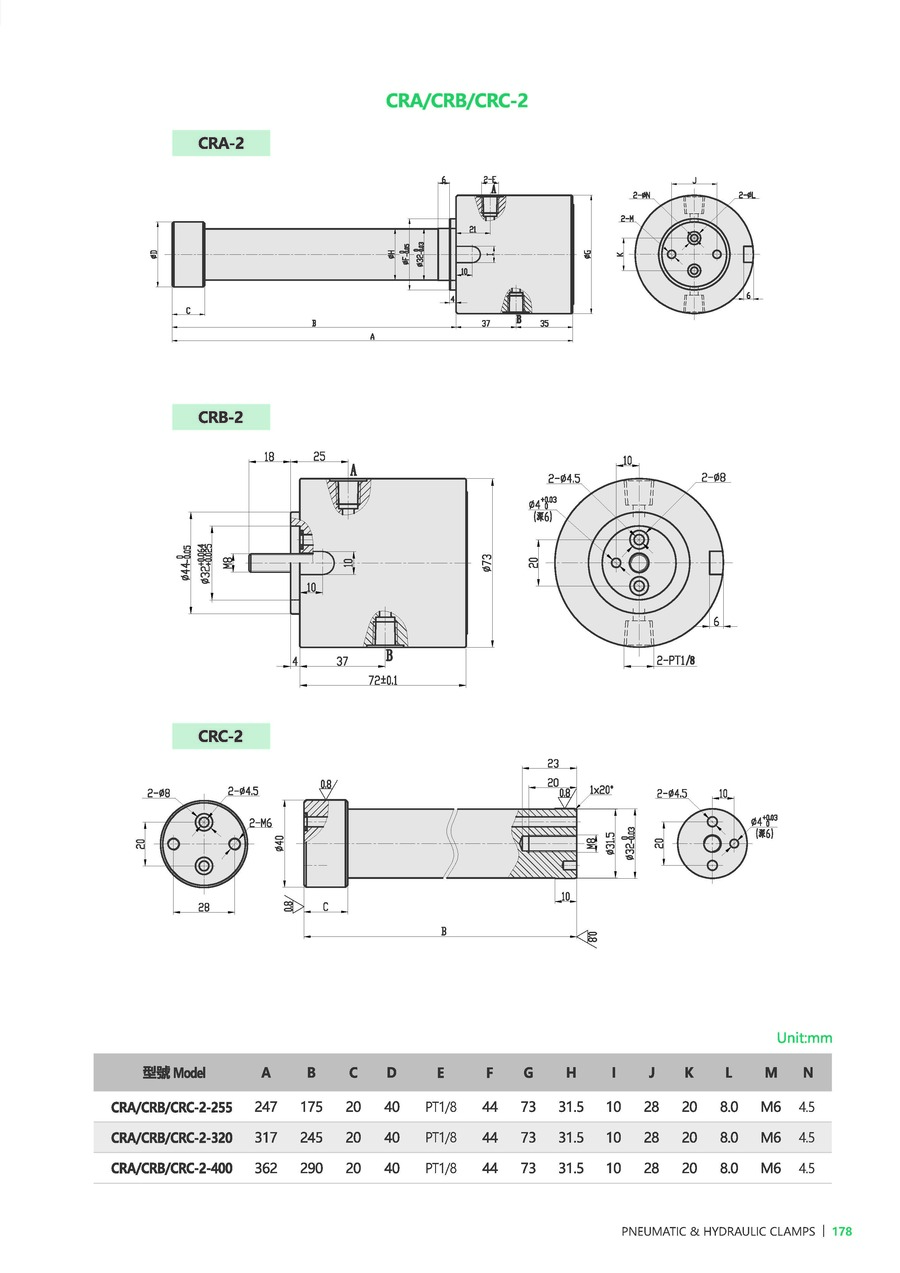

Model	CRA/CRB/CRC-2	CRA/CRB/CRC-4	CRA/CRB/CRC-6
The Number of the Ports	2	4	6
Range of Temperature(°C)	0~+70	0~+70	0~+70
Max. Operating Pressure(Mpa)	25	25	25
配管介面尺寸	PT1/8	PT1/8	PT1/8
Weight(kg)(Model: 255)	3.18	3.8	-
Weight(kg)(Model: 320)	3.57	4.37	4.18
Weight(kg)(Model: 400)	3.76	4.76	5.17
