Products

CMO

Product Information

NOTE:
Power Fluid: Filtered Oil.
Material of cylinder bareel: Carbon steel STKM-13c, Stainless tubes SUS 304/AL Tube A6063TDS-T5

Ordering Indication

（eg.CMOB-R-D-63/25-100-LB-Y）

CMOB	Series	CMOB: Standard Type, CMOD: Double Rods Type
R	Magnetic	Blank: No Magnet, R: Magnet
D	Flxed Cushioning Type	Blank: No Cushion, D: Cushion on Both Ends, F: Cushion on Head Cover, B: Cushion on End Cover
63	Hydraulic Cylinder Inside Diameter	Ø30, Ø40, Ø50, Ø63, Ø80, Ø100, Ø125
25	Rod	Blank: Standard Rod, Other Rods Size: please refer to the detailed data of the PDF below.
100	Stroke	Standard Stroke: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000
LB	Accessories for Body	FA: Front Flange, FB: Rear Flange, LB: Foot Mount, TC: Trunnion Type, CA: Single Trunnion, CB: Double Trunnion, CBP: CB+Pin, CAB: CA+P+CB
Y	Accessories for Rod	Y: Y Joint, YP: Y with Pin, I: I Joint, KG: Floating Joint, PHS: Rod-Eye Joint, T: T Joint, H: Welding Sleeve Joint, A: Adjustable Nut

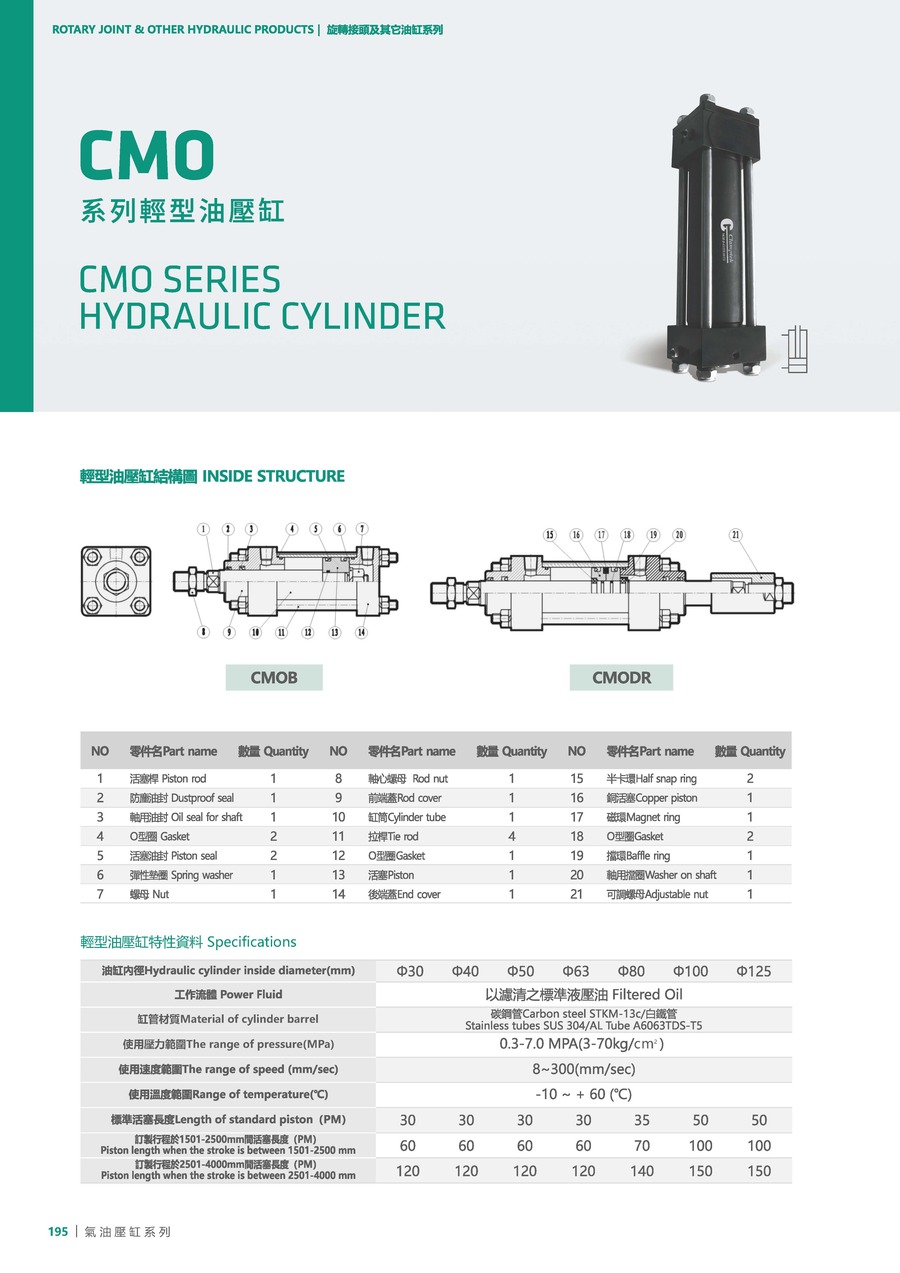

Product Information

Model	CMO-30	CMO-40	CMO-50	CMO-63	CMO-80	CMO-100	CMO-125
Hydraulic Cylinder Inside Diameter(mm)	Ø30	Ø40	Ø50	Ø63	Ø80	Ø100	Ø125
The Range of Pressure	0.3-7.0MPA(3-70kg/cm²)	0.3-7.0MPA(3-70kg/cm²)	0.3-7.0MPA(3-70kg/cm²)	0.3-7.0MPA(3-70kg/cm²)	0.3-7.0MPA(3-70kg/cm²)	0.3-7.0MPA(3-70kg/cm²)	0.3-7.0MPA(3-70kg/cm²)
The Range of Speed(mm/sec)	8-300	8-300	8-300	8-300	8-300	8-300	8-300
Range of Temperature(°C)	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C
Length of Standard Piston(PM)	30	30	30	30	35	50	50
Piston Length When the Stroke is Between 1501-2500mm(PM)	60	60	60	60	70	100	100
Piston Length When the Stroke is Between 2501-4000mm(PM)	120	120	120	120	140	150	150
