CHO

Product Information

NOTE:
Power Fluid: Filtered Oil.
Material of cylinder bareel: Carbon steel STKM-13c, Stainless tubes SUS 304

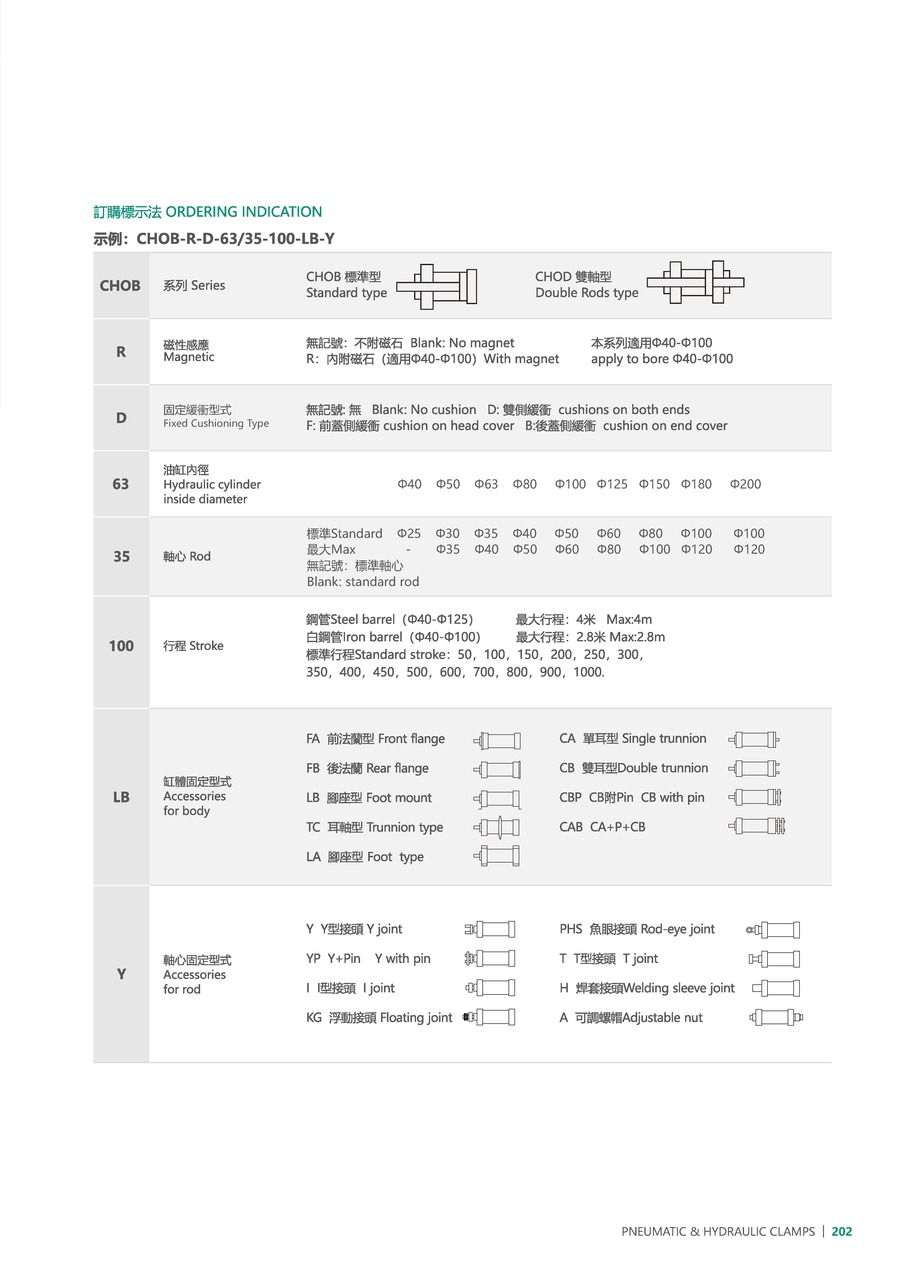

Ordering Indication

（eg.CHOB-R-D-63/35-100-LB-Y）

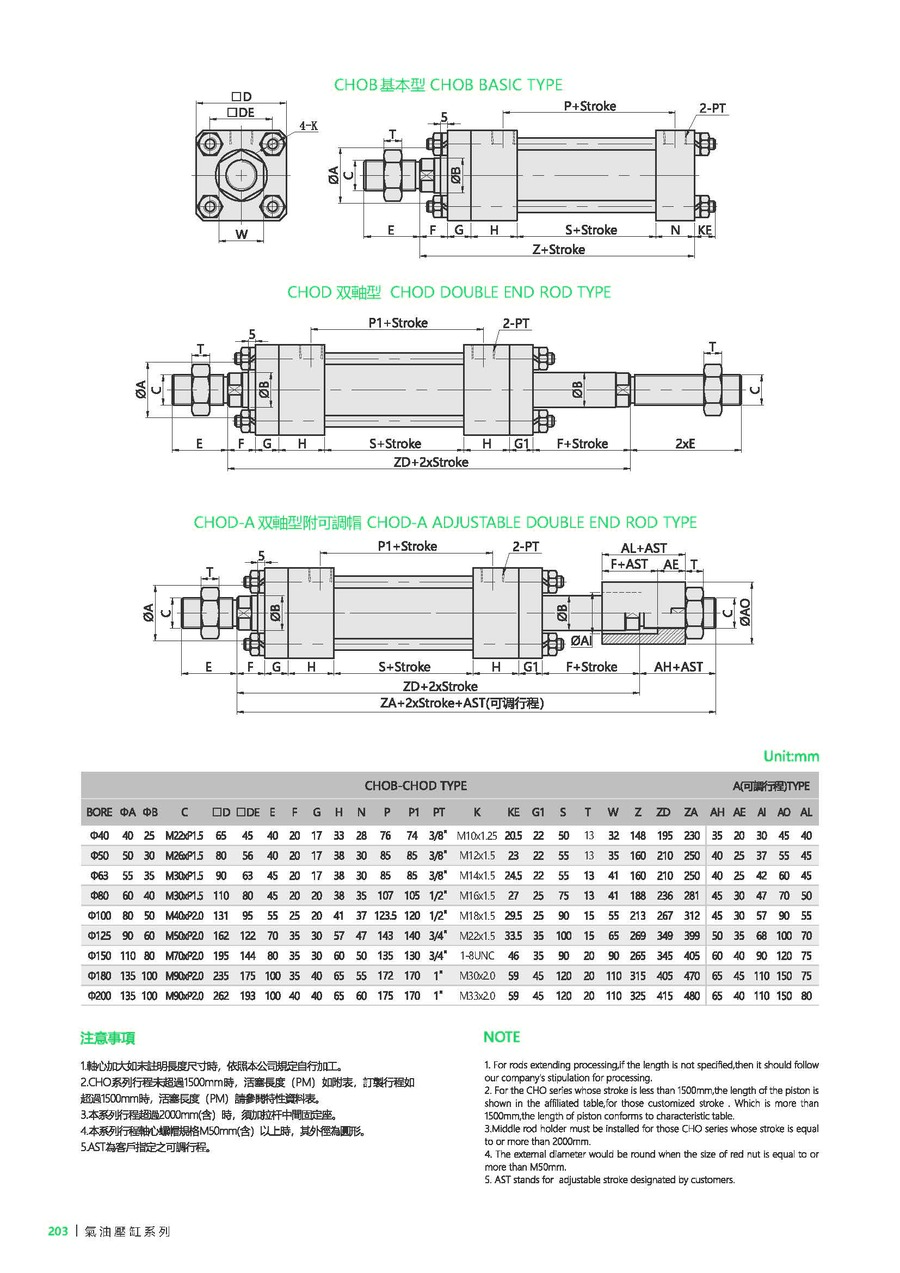

CHOB	Series	CHOB: Standard Type, CHOD: Double Rods Type
R	Magnetic	Blank: No Magnet, R: With Magnet(apply to bore Ø40-Ø100)
D	Flxed Cushioning Type	Blank: No Cushion, D: Cushion on Both Ends, F: Cushion on Head Cover, B: Cushion on End Cover
63	Hydraulic Cylinder Inside Diameter	Ø40, Ø50, Ø63, Ø80, Ø100, Ø125, Ø150, Ø180, Ø200
35	Rod	Blank: Standard Rod, Other Rods Size: please refer to the detailed data of the PDF below.
100	Stroke	Standard Stroke: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000

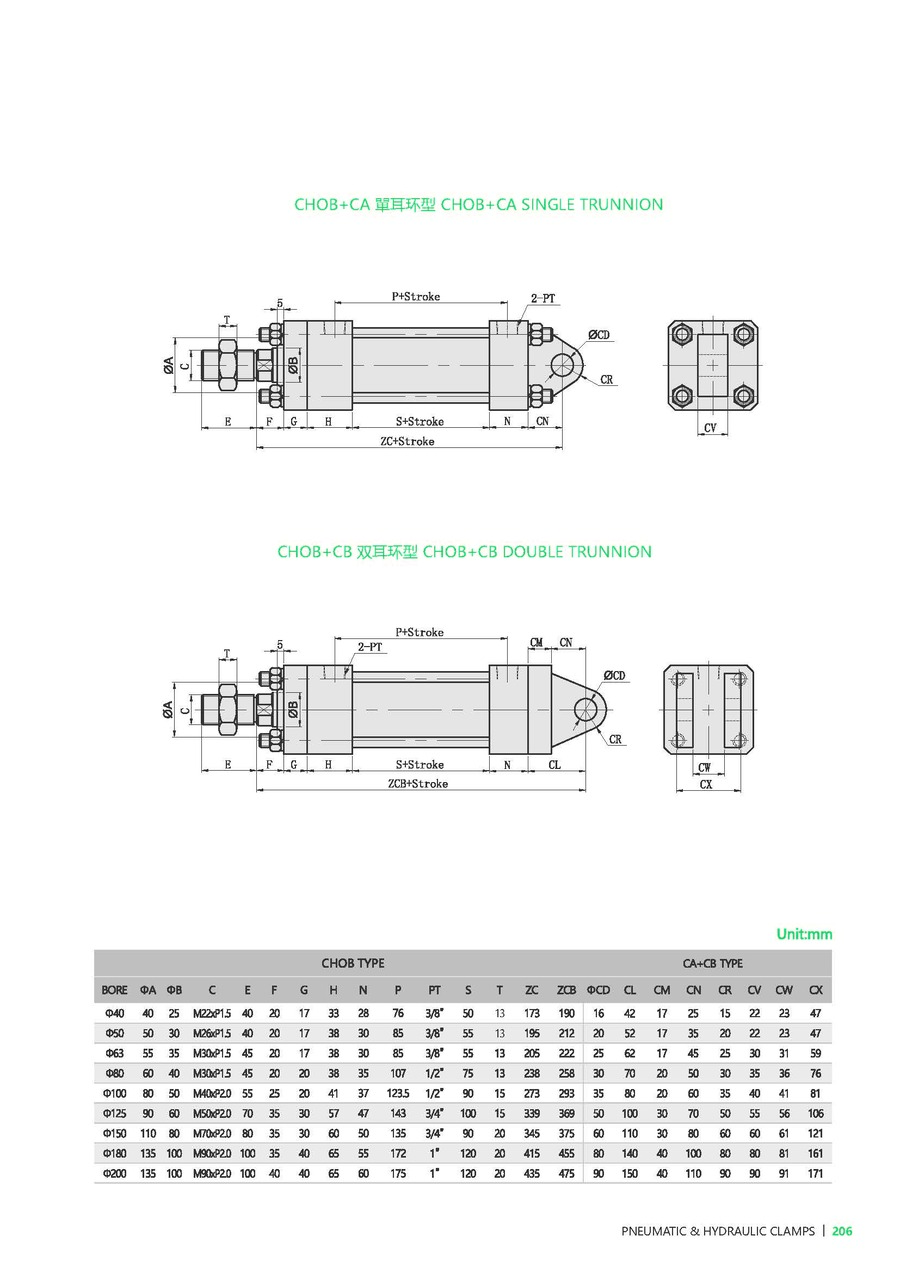

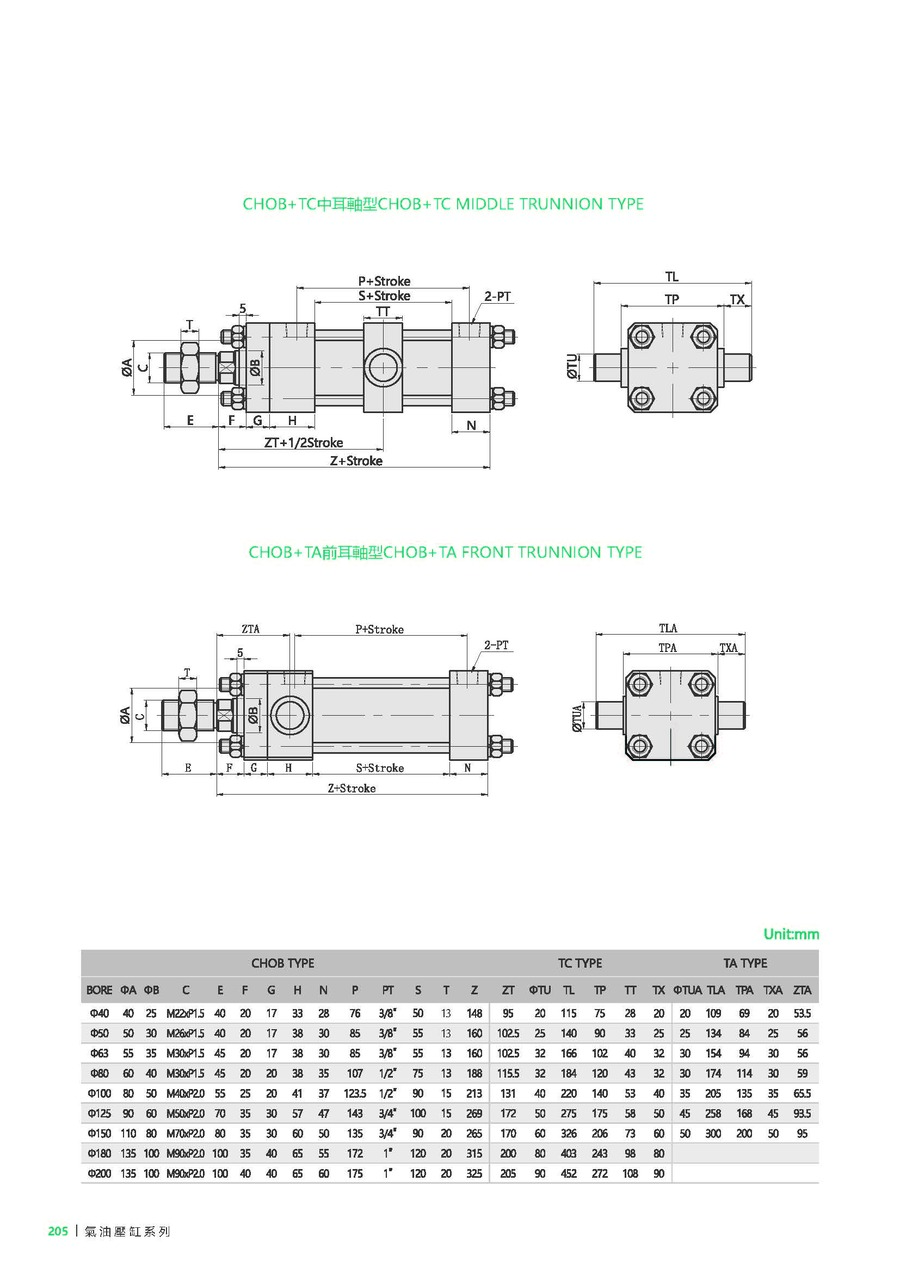

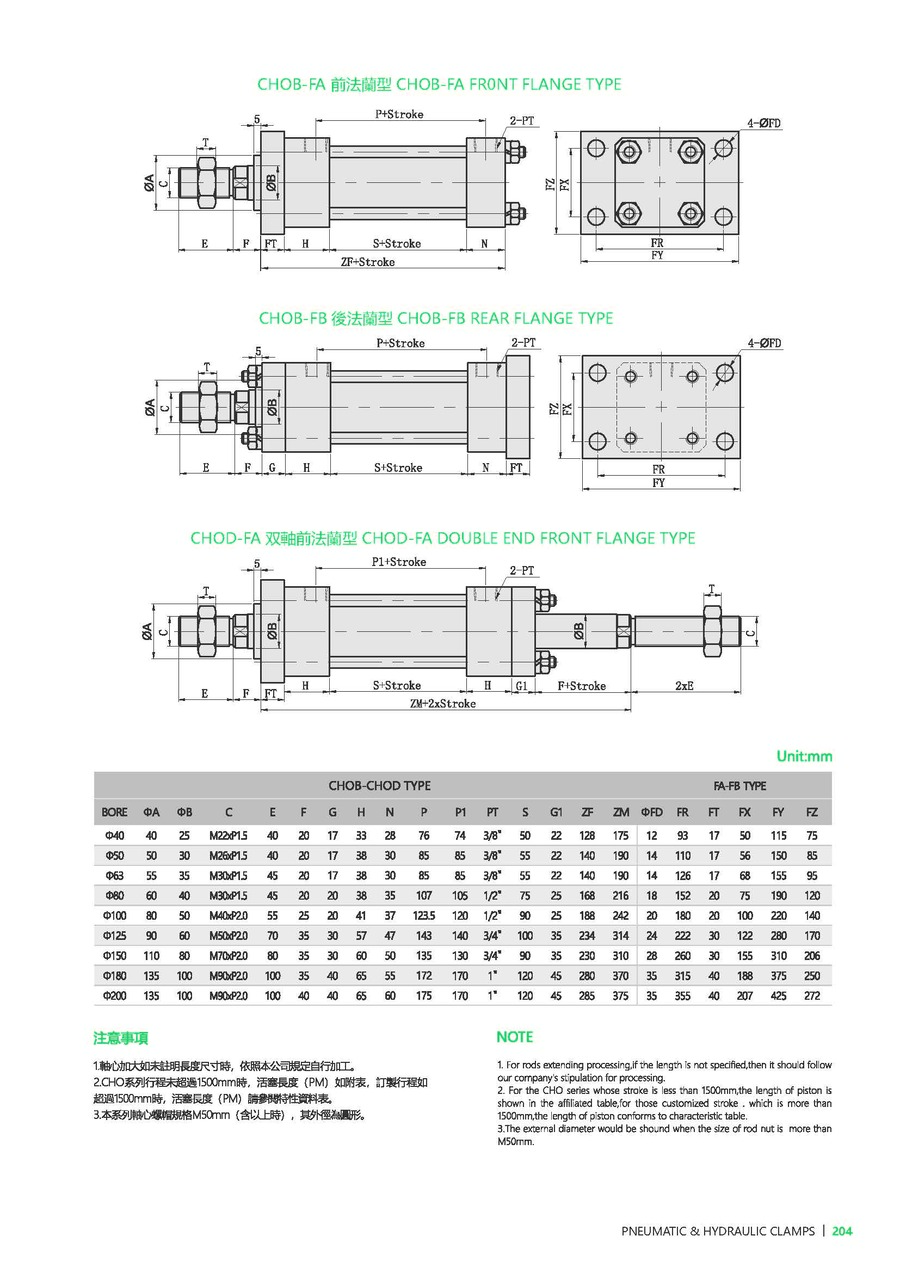

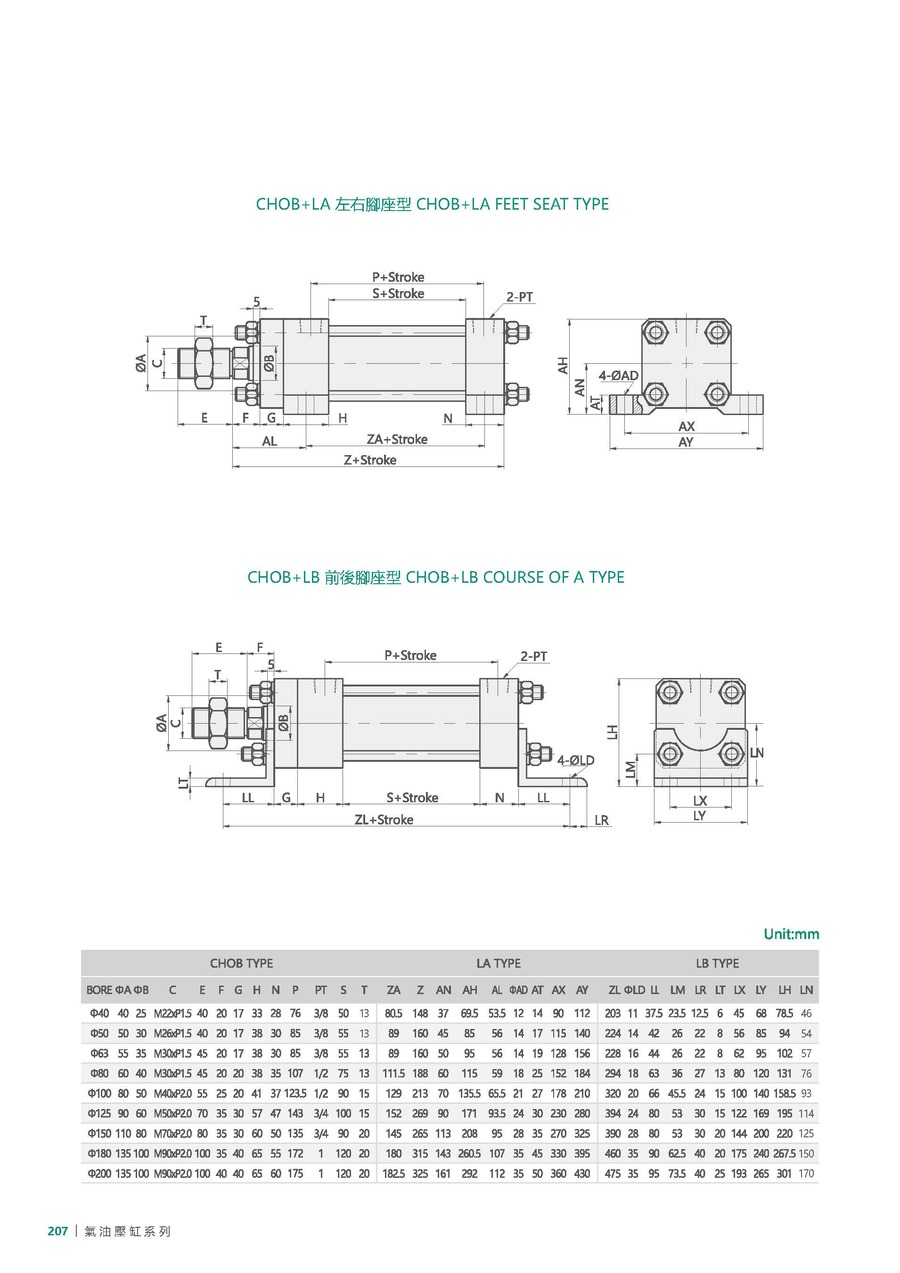

LB	Accessories for Body	FA: Front Flange, FB: Rear Flange, LB: Foot Mount, TC: Trunnion Type, LA: Foot Type, CA: Single Trunnion, CB: Double Trunnion, CBP: CB with Pin, CAB: CA+P+CB
Y	Accessories for Rod	Y: Y Joint, YP: Y with Pin, I: I Joint, KG: Floating Joint, PHS: Rod-Eye Joint, T: T Joint, H: Welding Sleeve Joint, A: Adjustable Nut

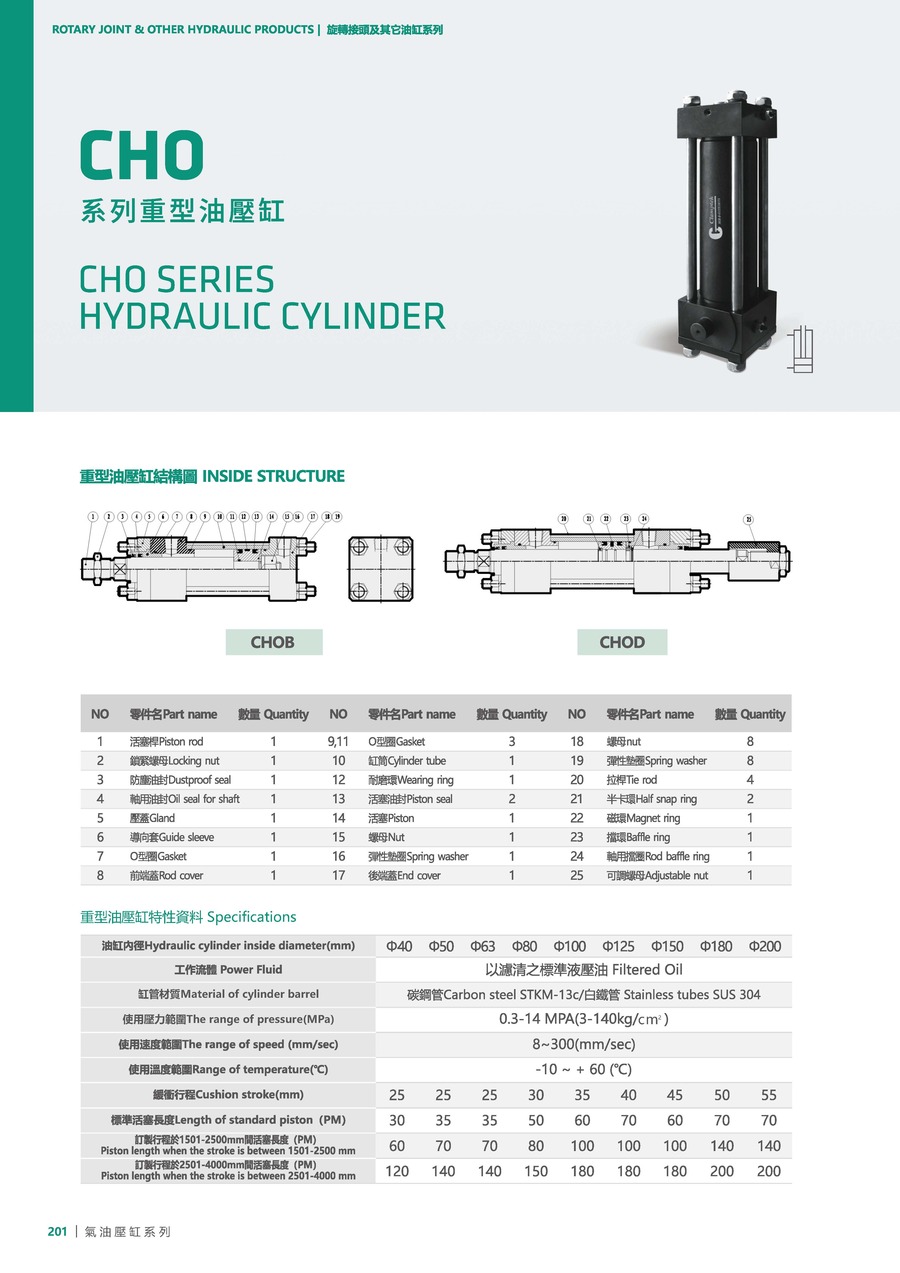

Product Information

Model	CHO-40	CHO-50	CHO-63	CHO-80	CHO-100	CHO-125	CHO-150	CHO-180	CHO-200
Hydraulic Cylinder Inside Diameter(mm)	Ø40	Ø50	Ø63	Ø80	Ø100	Ø125	Ø150	Ø180	Ø200
The Range of Pressure	0.3-14MPA(3-140kg/cm²)	0.3-14MPA(3-140kg/cm²)	0.3-14MPA(3-140kg/cm²)	0.3-14MPA(3-140kg/cm²)	0.3-14MPA(3-140kg/cm²)	0.3-14MPA(3-140kg/cm²)	0.3-14MPA(3-140kg/cm²)	0.3-14MPA(3-140kg/cm²)	0.3-14MPA(3-140kg/cm²)
The Range of Speed(mm/sec)	8-300	8-300	8-300	8-300	8-300	8-300	8-300	8-300	8-300
Range of Temperature(°C)	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C	-10~+60°C
Cushion Stroke(mm)	25	25	25	30	35	40	45	50	55
Length of Standard Piston(PM)	30	35	35	50	60	70	60	70	70
Piston Length When the Stroke is Between 1501-2500mm(PM)	60	70	70	80	100	100	100	140	140
Piston Length When the Stroke is Between 2501-4000mm(PM)	120	140	140	150	180	180	180	200	200
